Working with Configurations¶
What is a Configuration?¶
A configuration defines:
- Input Files: Required data files and model components
- Input Parameters: Configuration values and settings
- Outputs: Expected results and output specifications
- ComponentLocation - The location of the model component files (required for model execution)

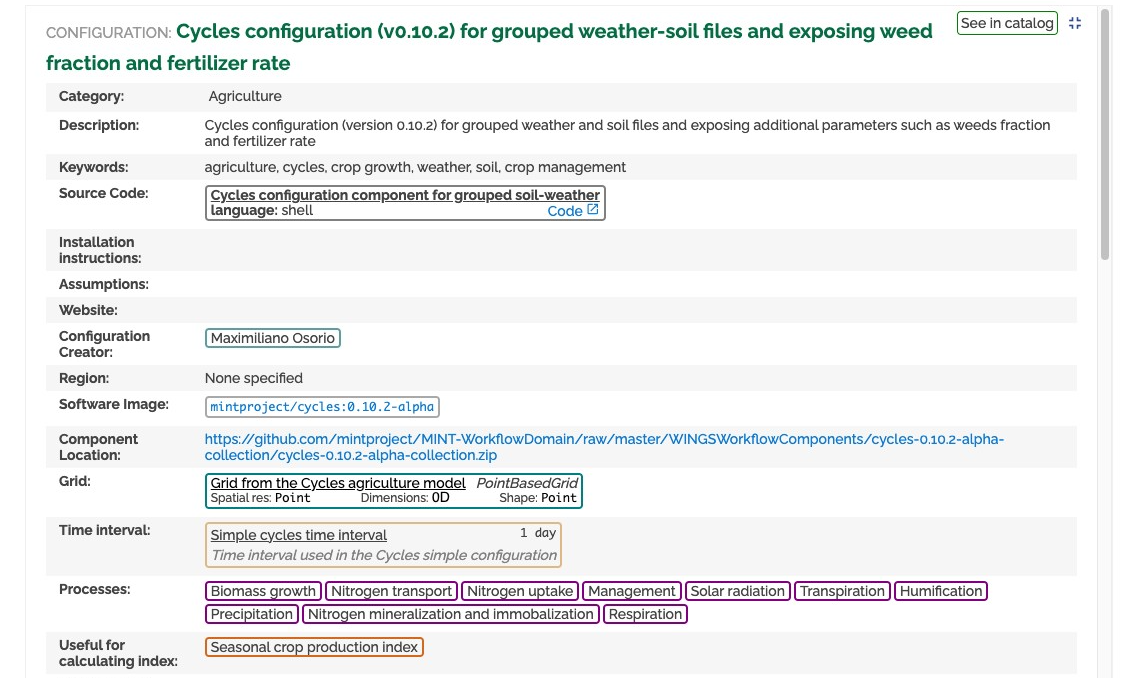

You can view detailed configuration information by clicking the expand button:
Managing Parameters¶

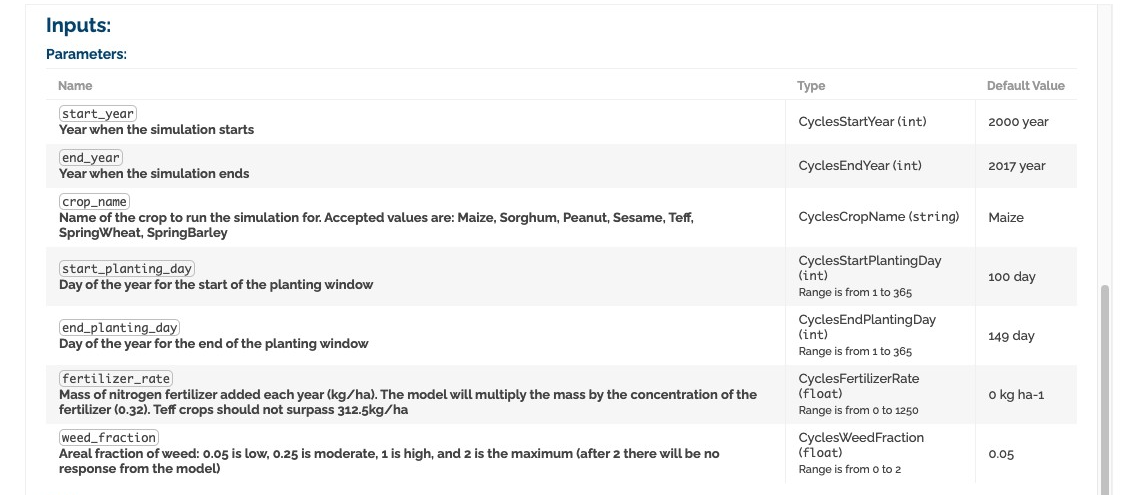

Input Parameters¶
Each configuration defines its required parameters with:
- Description and purpose
- Parameter order
- Default values
- Data types
- Validation rules
- Other metadata

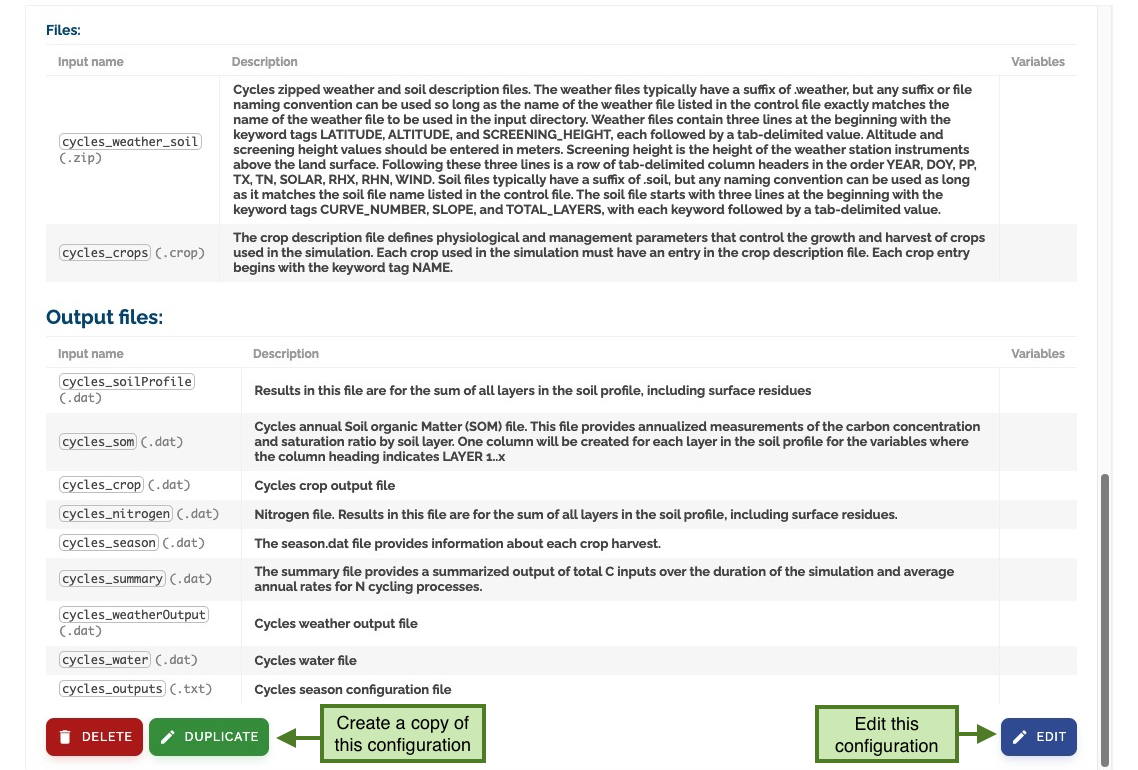

File Specifications¶
Input Files¶
Configurations specify:
- Required input files
- File format requirements
- Variable requirements for each file
- File validation rules
Output Files¶
Configurations define:
- Expected output files
- Output format specifications
- Output variable requirements
- Output validation rules
Component Location¶
The ComponentLocation field is a critical requirement for model execution:
- Specifies the URL or path to the model component files
- Must be a valid and accessible location
- Typically points to a ZIP file containing the model code
- Required for both ModelConfiguration and ModelConfigurationSetup
For DYNAMO versions running on TACC systems, the ComponentLocation should point to a Tapis Application. Tapis Applications are containerized applications that can be executed on TACC clusters. For more information about creating and managing Tapis Applications, refer to the cookbook-docker-template documentation.
Next Steps¶
Now that you understand what configurations are, you can learn about creating and editing configurations. After that, you can proceed to learn about creating and managing setups. Setups allow you to provide specific values and pre-configured settings for your model runs based on these configurations.
